Bollard Installation in Perth

Abstract About Us page background with a wavy line separating a yellow area from a gray one, creating a modern design element.

Trusted Safety Bollard Supply and Installation Across WA

Image Extra supplies and installs bollards for car parks, warehouses, driveways, shopfronts and pedestrian areas across Perth. A good bollard installation starts with the right product and the right fixing method: steel bollards set into a concrete footing, surface mounted bollards bolted to an existing slab, or a removable bollard that comes out when a vehicle needs to get through.

Our team compares your site, ground conditions and traffic movements against the range before recommending what to install, so you’re not paying for more protection than the job calls for, or less.

Explore Our Range
GET A QUOTE
This field is hidden when viewing the form
1
BOLLARD INSTALLATIONS
1
PRODUCTS
1
SERVICES
1
YEARS OF EXPERIENCE

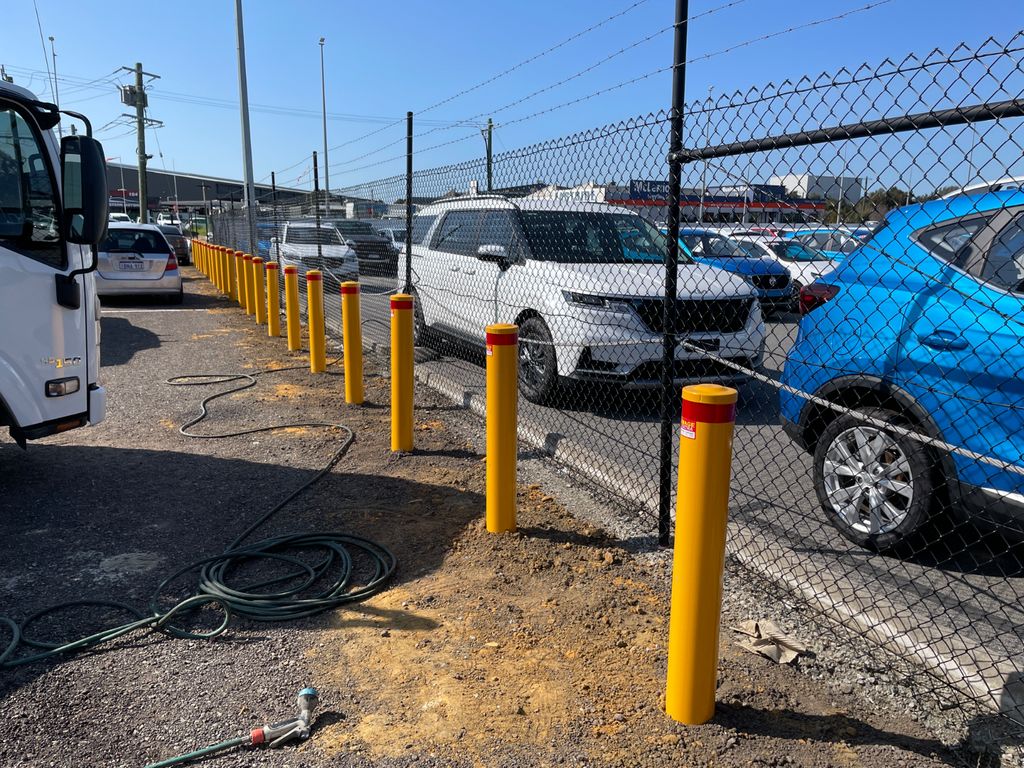

Image Extra Bollard Installation01 Bollard Installation 2

Key Considerations for Your Bollard Installation

The right option depends on the specific requirements of your property. Before recommending a product and installation method, Image Extra considers how the finished setup needs to work day to day.

Three things we check before providing a quote:

What Needs Protecting

Whether it’s a building, parking bay, piece of equipment or pedestrian area.

Vehicle and Pedestrian Flow

If the route stays closed, opens occasionally for deliveries and authorised traffic, or handles constant two-way movement.

Ground Conditions

The existing surface, concrete depth, reinforcement, drainage, underground services and clearance for a bollard sleeve.

Abstract home page background with a yellow center and gray wave-like shapes on either side, creating a dynamic visual for web design.

Choosing the Right Bollards for Your Property

Image Extra supplies steel and stainless steel bollards for commercial, industrial and residential properties across Perth. Explore the options below to find a practical fit for your protection and access requirements.

In Ground Bollards

An in-ground bollard is set below ground in a concrete footing for permanent protection, embedded deep enough to stay put under vehicle impact.

Best for: Shopfronts, loading bays and warehouse openings.

Yellow right arrow icon inside a circle for the Home Page. Navigation symbol for website home page inclusion.
Home Page: Variety of bollards. Includes yellow, white, gray, and blue bollards. One bollard has a handicap symbol.

Removable Bollards

A removable bollard locks into a receiver sleeve in the ground and lifts out completely when an authorised vehicle needs to get through.

Best for: Gates, driveways, laneways and delivery routes.

Yellow right arrow icon inside a circle for the Home Page. Navigation symbol for website home page inclusion.
Home page: Variety of bollards, including removable and fixed options, in yellow, white, and stainless steel, for traffic and security control.

Retractable Bollards

Retractable bollards lower into a below-ground housing and self-lock when raised, so the same post handles dozens of movements a day without being lifted out.

Best for: Roller doors, entrances and frequently used entry points.

Yellow right arrow icon inside a circle for the Home Page. Navigation symbol for website home page inclusion.
Home page: Variety of bollards. Different models of security posts in yellow, silver, red, and white. Removable and fixed bollards.

Surface Mount Bollards

Surface mounted bollards are fixed to a suitable concrete slab using a base plate and compatible anchors, without the need to dig a footing.

Best for: Car parks, warehouses and other solid-surface areas.

Yellow right arrow icon inside a circle for the Home Page. Navigation symbol for website home page inclusion.
Home Page: Variety of bollards in yellow, white, blue, silver, and stainless steel finishes. One bollard has a handicap symbol.

Parking & Traffic

Fold-down parking bollards stay raised while a bay is protected and lower flat for an authorised vehicle to park.

Best for: Private bays, apartment complexes and commercial car parks.

Yellow right arrow icon inside a circle for the Home Page. Navigation symbol for website home page inclusion.
Home page: Traffic safety equipment including bollard, barrier, cone, speed bump, and fixings for traffic management.

Get the Protection Your Site Needs

Tell us about your site and the result you’re after. Our team can recommend suitable bollards and provide an installation quote.

Request a Quote
Perth Safety Security Bollards Image Bollard Installation 15

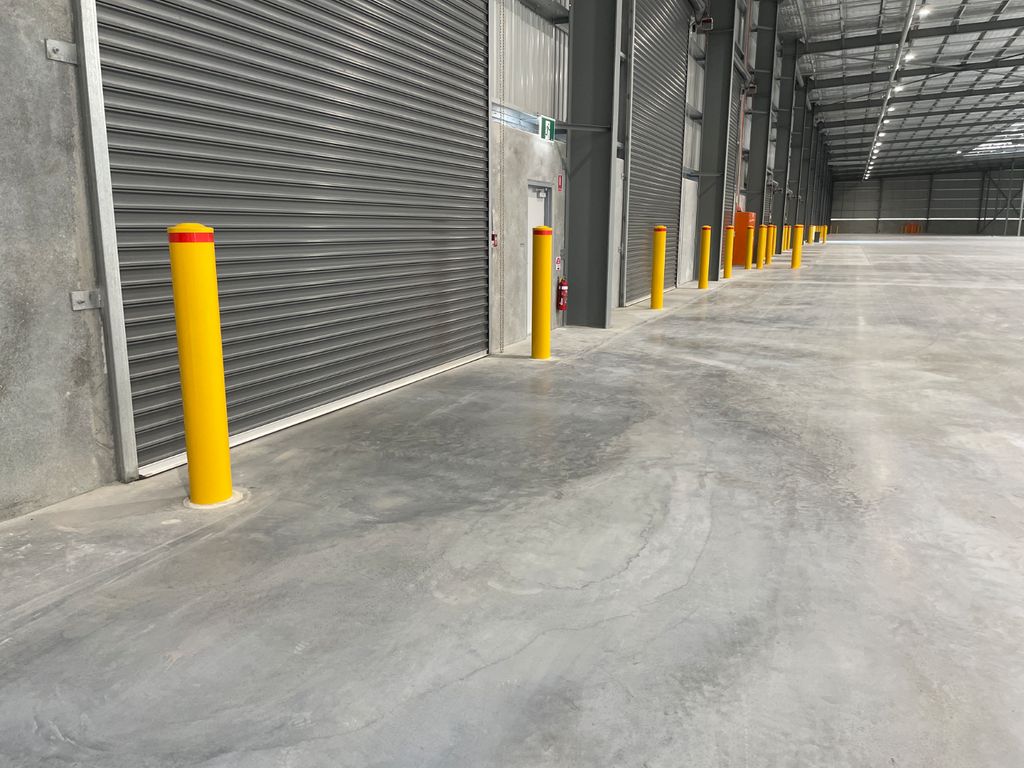

Image Extra Bollard Installation03 Bollard Installation 17

Bollard Installation from Planning to Completion

Every site brings different surface, traffic and protection requirements. Before bollard installation begins, Image Extra reviews these details so the bollard type, position and fixing method can all be confirmed upfront, not worked out on the day.

Our Four-Step Installation Process

The exact requirements vary by product, but most projects follow four main stages:

Tell us what needs protecting and how vehicles should move through space. Send site photos, rough measurements, surface details and how many bollards you need.

Steel and stainless steel suit most sites, while on-conductive or flexible plastic bollards suit substations and low-speed car parks. A permanent post stays fixed; removable and retractable bollards keep movement open.

We check the surface, concrete depth, drainage, reinforcement and underground services. Where core drilling is needed for the receiver sleeve, the slab and clearance have to suit the bollard going in, so this gets confirmed before we quote a fixed price.

Each bollard is positioned, secured, aligned and set level. Removable and retractable bollards are tested to confirm the sleeve, locks and moving parts all work before we call the job finished.

Abstract home page background with a yellow center and gray wave-like shapes on either side, creating a dynamic visual for web design.

Explore Traffic and Workplace Safety Equipment

Bollards may form one part of a broader traffic or workplace safety setup. Image Extra also supplies road and parking safety equipment, including speed humps, wheel stops, barrier rails, safety mirrors and traffic cones.

dugite rubber module black speed hump 250mm 01 1 Bollard Installation 20
Speed Humps for Car Parks
dugite concrete wheel stop 01 Bollard Installation 22
Wheel Stops and Parking
ball fence galvanised surface mounted through post Bollard Installation 24
Barrier Rails for Traffic Areas
convex mirror 800mm 01 Bollard Installation 26
Safety Mirrors for Workplaces
rubber base traffic cone collapsible 720mm Bollard Installation 28
High-Visibility Traffic Cones
dugite pedestrian rail 900mm Bollard Installation 30
Vehicle and Parking Products
Abstract home page background with a yellow center and gray wave-like shapes on either side, creating a dynamic visual for web design.
Testimonials
Abstract home page background with a yellow center and gray wave-like shapes on either side, creating a dynamic visual for web design.

Frequently Asked Questions

Image Extra supplies and installs bollards for commercial, industrial, public and residential properties across WA. The answers below cover common questions about bollard selection, installation, placement and access control.

The cost depends on the bollard type, how many you need, and your ground conditions. Product prices across the range start from around $30 for a basic knock-down bollard and run past $700 for premium stainless steel or automatic options, with the fixing method quoted separately once we’ve seen your site. The best way to get an accurate number is to request a quote with a few photos and measurements.

The relevant requirements depend on the purpose and location of the job. Car parks, pedestrian routes, accessible areas and security applications can involve different standards, clearances and site rules. Image Extra installs its bollards to meet Australian standards, and the specific requirements for your project are worth checking during planning rather than assuming one specification suits every site.

Approval requirements depend on where the bollards go and who controls the land. Work on private property is usually treated differently to work on a verge, footpath, road reserve, leased site or shared accessway. Check with the property owner, strata manager, landlord or local council if you’re not sure which applies.

Yes. Certain surface mounted bollards are designed to bolt straight onto existing concrete using a base plate and suitable anchors. Some removable bollards can also go into existing concrete using core drilling for the receiver sleeve, so the condition of the slab should be checked first.

A removable bollard can suit a driveway where you only need occasional vehicle movement, such as getting a car in and out a few times a week. Available depth, drainage and surface condition all need to be checked first. A removable surface mounted bollard is another option where digging below ground isn’t practical.

Image Extra recommends servicing retractable bollards at least once a year. Regular cleaning and checks help stop dirt and grit from affecting the mechanism, and catch wear before it turns into a bigger problem.

Yes. Image Extra installs a range of parking and traffic products, including speed humps, safety mirrors, height restriction bars, boom gates and chain gates. Visit the Image Extra services page or contact the team to confirm what’s available for your site.
